Automatic Hydraulic Tracer for Lathe

Fournisseur : Gamut Machine Tools (Inde)

Machines, équipements et matériel

Partagez ce produit sur vos réseaux

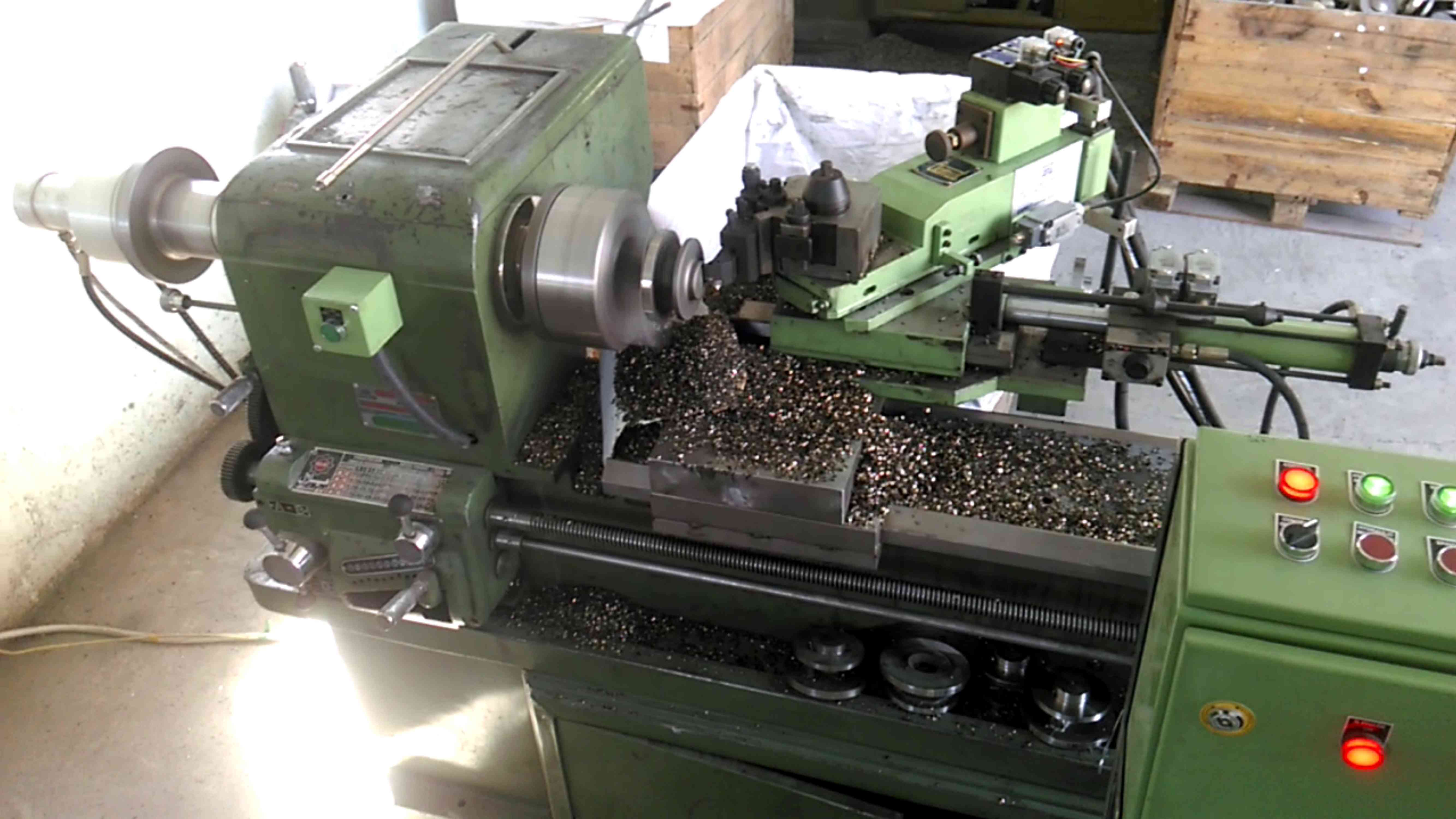

Self contained Tracing System includes GAMUT Single Axis Tracer mounted on independent longitudinal hydraulic feed slide with 0~40mm/second speed variation control, Hydraulic direction control and Electric controls to achieve complete Automatic 2-cut one rough and one 0~1.5mm preset finish cut Auto cycle. Operator is required to load the job, press the Auto start button and unload the job after completion of the cycle. The system include Automatic Tracing slide, Hydraulic Longitudinal Feed slide, Round master holding device, Dual delivery Hydraulic power pack with control valves, Electric Control panel and Hose pipe set.

Autres infos sur le produit

Avantages

• In-built Lubrication System for Tracing Slide. • Hardened Tool post with Quick Change Tool Holder. • Automatic Finish cut system from 0-1.5 mm. Tool get advance automatically in finish cut mode. • Forward and retraction of slide and finish cut operation done automatically. • Master carrier for round master and Flat Template Holder (optional at extra cost) can be set easily having arrangement for longitudinal and axial movements. • Power pack having Dual Delivery pump, Oil level indicator, special isolator valve for pressure gauge and filters
