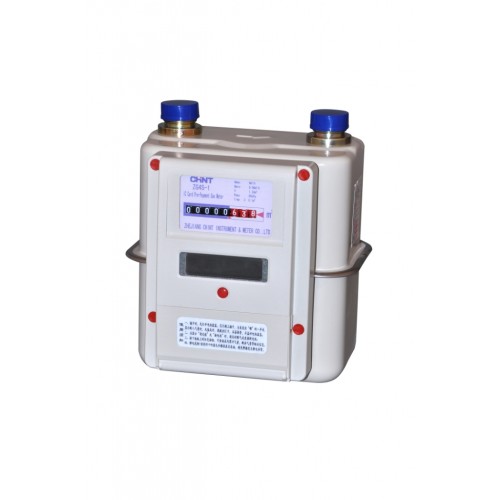

ZG1.6S-1 / ZG2.5S-1 / ZG4S-1 IC card prepaid steel case gas meter can accurately and accurately measure the flow rate of natural gas meter, liquefied petroleum gas, city gas pipe, marsh gas and so on. One card for one meter, it has various functions such as reminder, direct display and storage and protection. Key features: one card for one meter ensures consistence. Maximum permissible gas volume being able to be set, and easy to use, easy to use and easy to use. to be ordered illegal operation record
type
technical parameter
ZG1.6S-1
ZG2.5S-1
ZG4S-1
Qn
1.6 m3//h
2.5 m3//h
4m3/h
Qmax
2.5 m3//h
4m3/h
6m3/h
Qmin
0.016 m3//h
0.025m3/h
0.04m3/h
Cyclic volume
1.2 dm3
Operating pressure
0.5-50 KPa
Total pressure loss
less than 250Pa
Error
0.1Qmax ?Q?Qmax
±1.5%
Qmin?Q?0.1Qmax
±3%
Max reading
99999.999 m3
Min reading
0.0002 m3
Static working voltage
20uA
Maximum instantaneous current
less than 300mA
Impulse constant
0.1m3/impulse or 0.01 m3/impulse or photoelectron direct reading
Central distance
130 110 90
Connection screw worm(D)
M26x1.5-6g M30x2-6g G3/4B G1B G11/4B
